Overview

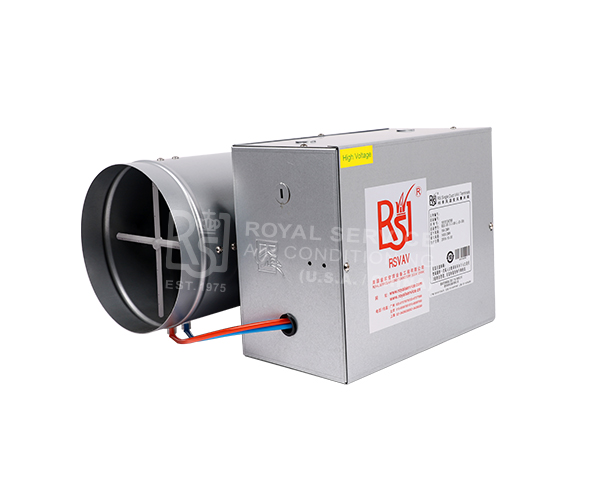

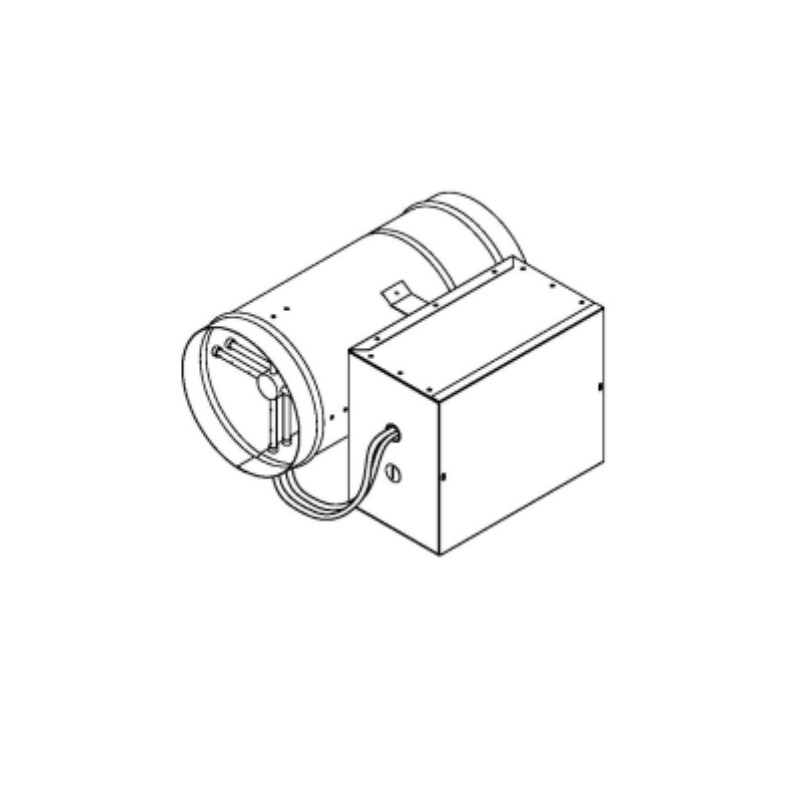

The RSV-RF series circular VAV terminal units are used for supply air and extract air control in standard variable air volume systems.

With a compact footprint and minimal ceiling space requirement, these units are ideal for VAV retrofitting projects in existing buildings.

-Suitable for the control of volume flow rate, room pressure or duct pressure

-Suitable for airflow velocities up to 13 m/s

Key Features

• Casing: 22‑gauge (0.8 mm) zinc‑coated galvanized steel for durability

• Airflow sensing: Cross airflow sensor with multi‑point measurement, amplification factor ≥ 2.5

• Damper construction: Gasket sandwiched between two 18‑gauge (1.2 mm) G.I. sheet metal layers for tight sealing

• Insulation: 1" (25 mm) fiberglass internal insulation with BGT cover, compliant with NFPA‑90A and UL‑181 standards

• Low leakage: Casing and damper leakage not to exceed 1% at 4 in.w.g. (1000 Pa)
